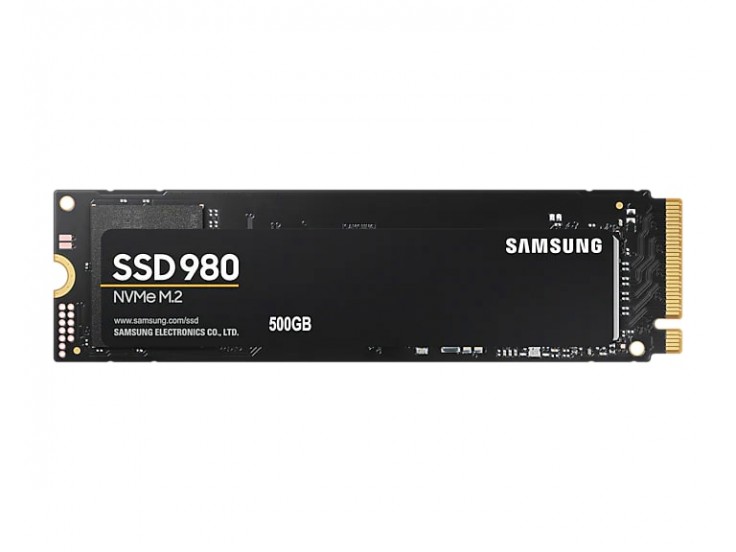

SSD Samsung MZ-V8V500BW, Seria 980, 500GB, PCIe/NVMe, M.2 (2280), rata transfer r/w 3,100/2,600MB/s

General Feature

Application

Client PCs

Capacity

500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

 Form Factor

M.2 (2280)

Interface

PCIe Gen 3.0 x4, NVMe 1.4

Dimension (Pack: WxHxD)

80.15 x 22.15 x 2.38 (mm)

 Weight

Max 8.0 g Weight

Storage Memory

Samsung V-NAND 3-bit MLC

Controller

Samsung Pablo Controller

Cache Memory

HMB(Host Memory Buffer)

Special Feature

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes

Performance

Sequential Read

Up to 3,100 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 2,600 MB/s * Performance may vary based on system hardware & configuration

Random Read (4KB, QD32)

Up to 400,000 IOPS* Performance may vary based on system hardware & configuration

Random Write (4KB, QD32)

Up to 470,000 IOPS * Performance may vary based on system hardware & configuration

Random Read (4KB, QD1)

Up to 17,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD1)

Up to 54,000 IOPS * Performance may vary based on system hardware & configuration

Environment

 Average Power Consumption (system level)

*Average: 4.3 W*Maximum: 5.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 45 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

3.3 V ± 5 % Allowable voltage

 Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit

Not Available

Software

Management SW

Magician Software for SSD management

Warranty

5-Year Limited Warrantyor 300 TBW Limited Warranty
